Description

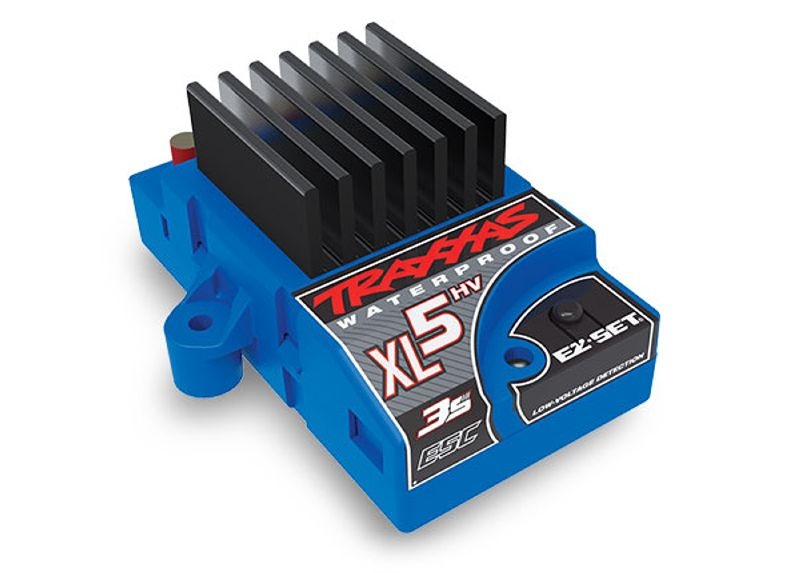

Brushed regulator XL-5HV 3s, waterproof, suitable for all TRX-4 models.

Technical data: Input voltage: 6-7 cells NiMH; 2s/3s LiPo Case size: 31,2 mm x 55,4 mm x 28,2 mm Weight: 74 g Motor limit: 12-turns (550 size) with 2s LiPo; 21-turns (550 size) with 3s LiPo Maximum current: 100 A BEC voltage: 6.0 V DC BEC current: 1 A Power wire: 14 AWG Transistor type: MOSFET PWM Frequency: 1700 Hz Heat Cutoff: Yes One-button setup: Yes Undervoltage shutdown: Yes

Profile Selection Sport Mode: 100% Forward, 100% Brake, 100% Reverse Race Mode: 100% Forward, 100% Brake, no Reverse Training Mode: 50% Forward, 100% Brake, 50% Reverse Trail Mode: 100% Forward, 100% Brake, 100% Reverse, Drag Brake at neutral position Crawl Mode: 100% Forward, Hill Hold Brakes at neutral, Reverse directly possible

Scope of delivery: 1x Brushed ESC XL-5HV 3S
