Description

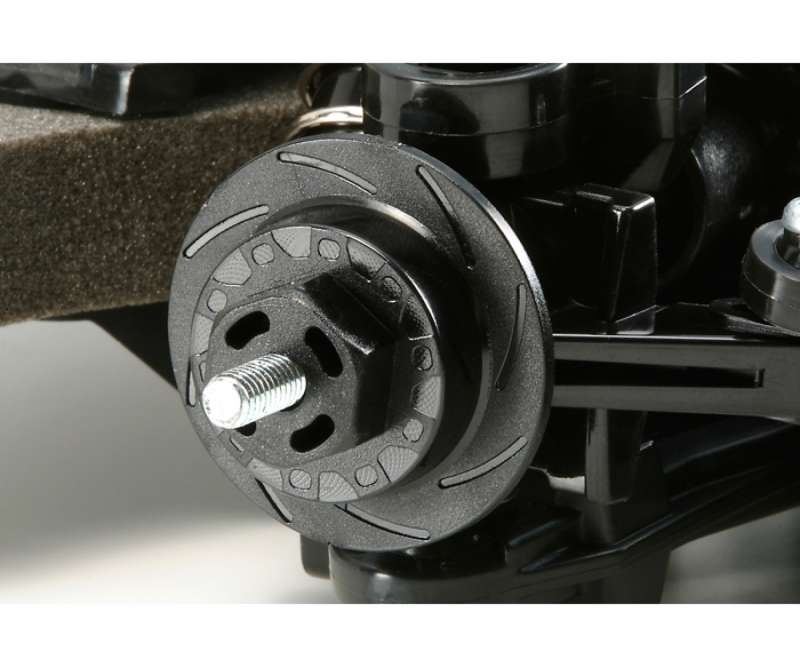

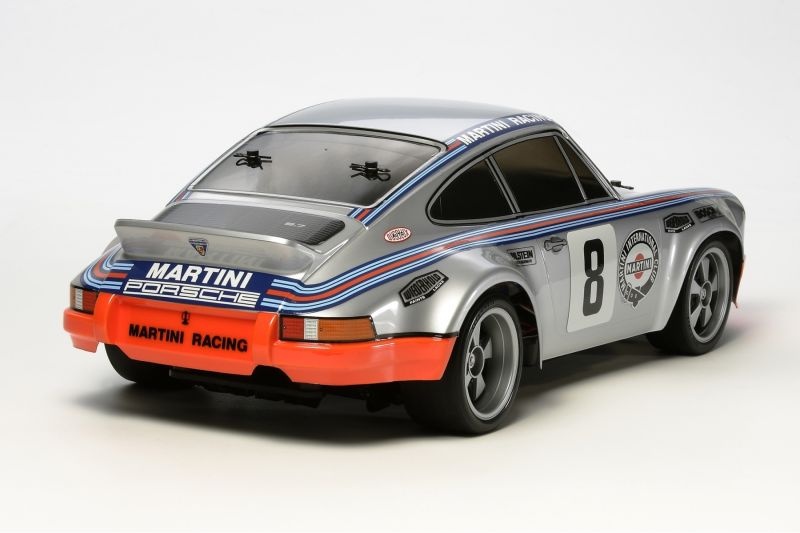

The TAMIYA Porsche 911 Carrera RSR on the TT-02 chassis is an easy-to-set-up RC model with all-wheel drive. Its powerful electric drive makes the approximately 41 cm long racing legend from 1973 a fun car. The 1:10 scale kit model is based on the TT-02 chassis. The wheelbase, ground clearance, track and gear ratio can be adjusted in many ways and with the countless optional tuning parts, the chassis can be quickly tuned into a racer or converted for off-road use. The 4WD drive with central shaft, double wishbones and suspension struts on all four wheels ensure a prototypical driving image and the best traction. The underside of the chassis has an extra smooth design and the battery compartment accommodates all common battery types. The visual highlight is the wheel drivers, which have attached dummy brake discs. The robust polycarbonate body perfectly reproduces the dynamic shape of the Porsche 911 Carrera RSR and, to match, the decal sheet is finely reproduced with the Martini racing design.

Technical details:

• TT-02 tub frame chassis
• 4WD all-wheel drive
• central drive shaft

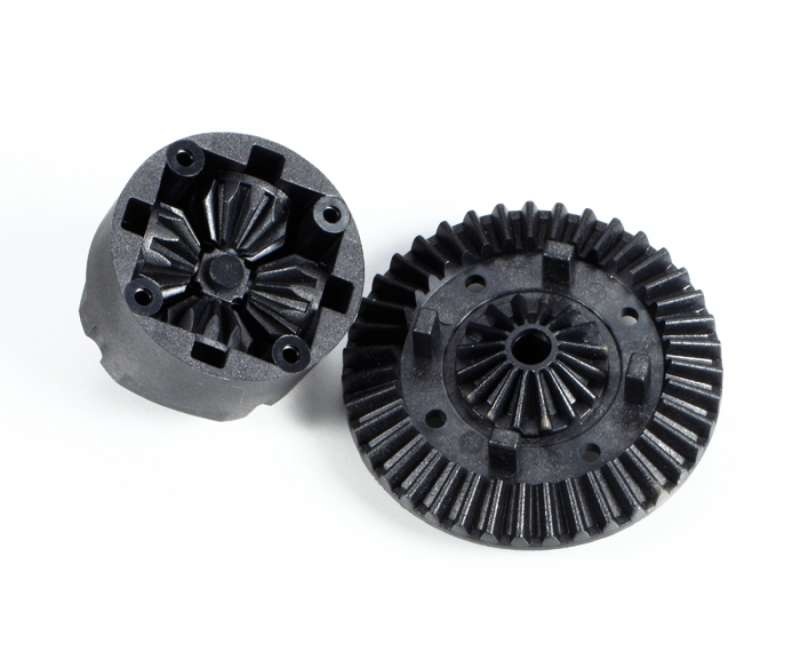

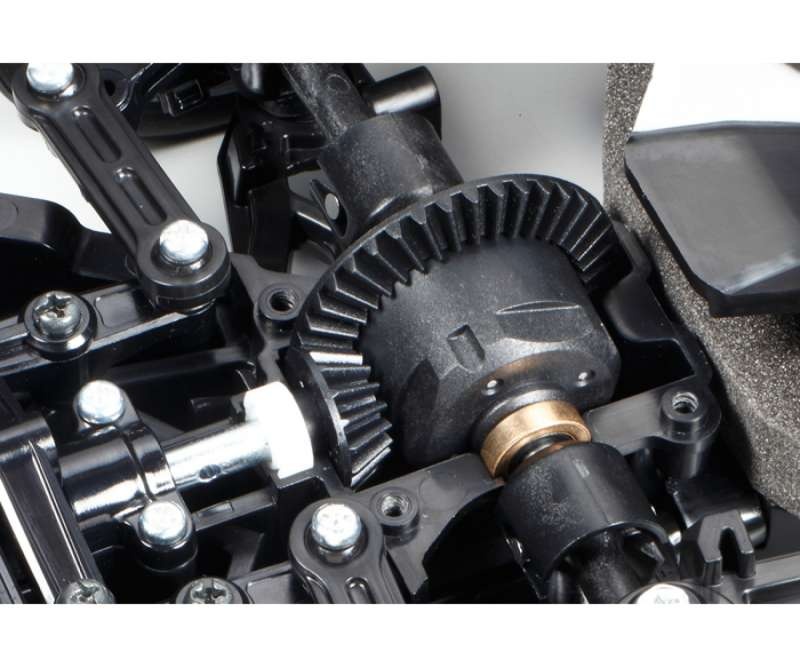

• cone differential v/h with four bevel gears

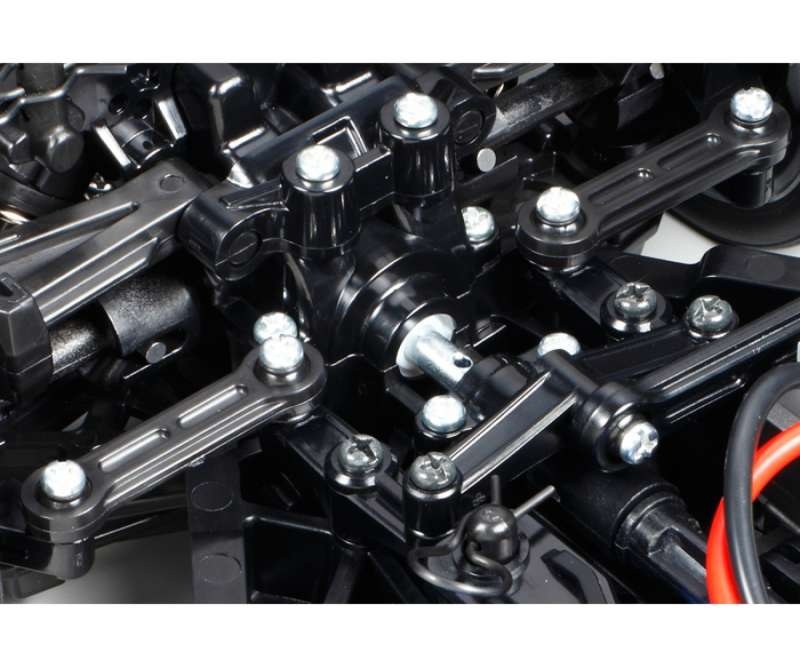

• double wishbones v/h
• adjustable front track

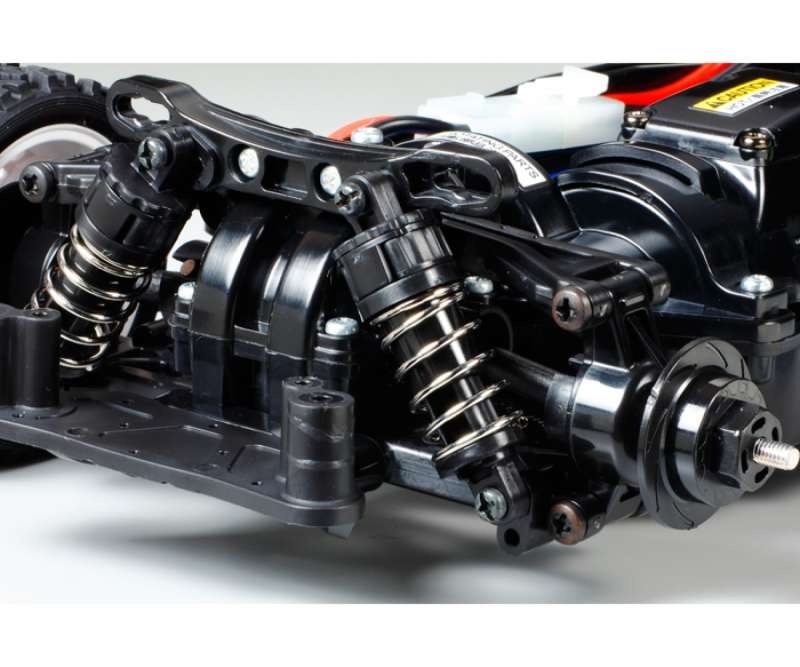

• independent suspension with friction dampers
• electronic speed controller (not LiPo-capable)

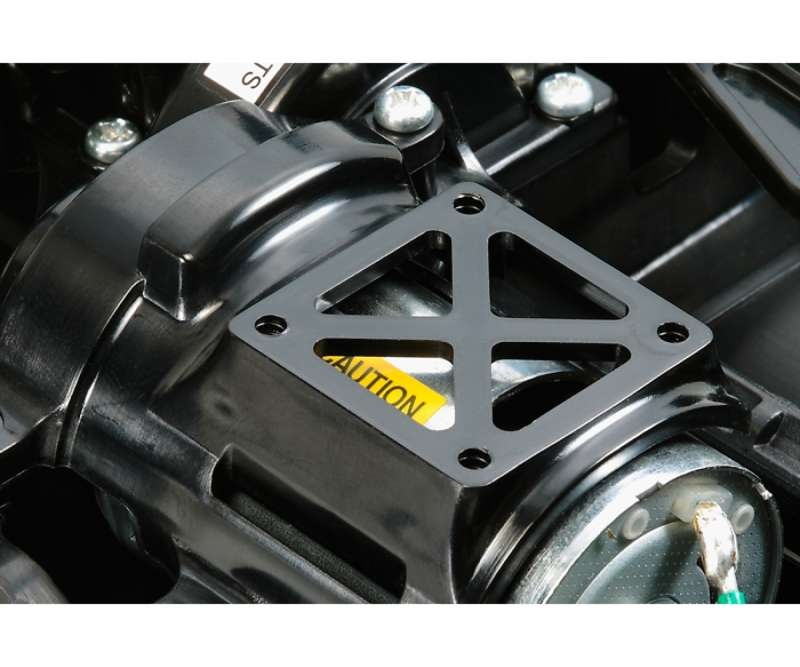

• electric motor type 540 with air cooling
• motor mount compatible with electric motors type 380
• battery bay suitable for all battery types
• gear ratio tunable in 10 steps
• robust and detailed polycarbonate body (unpainted)
• separate injection molded mirrors
• wheelbase variable: normal 258 mm (257) mm/short 252 mm

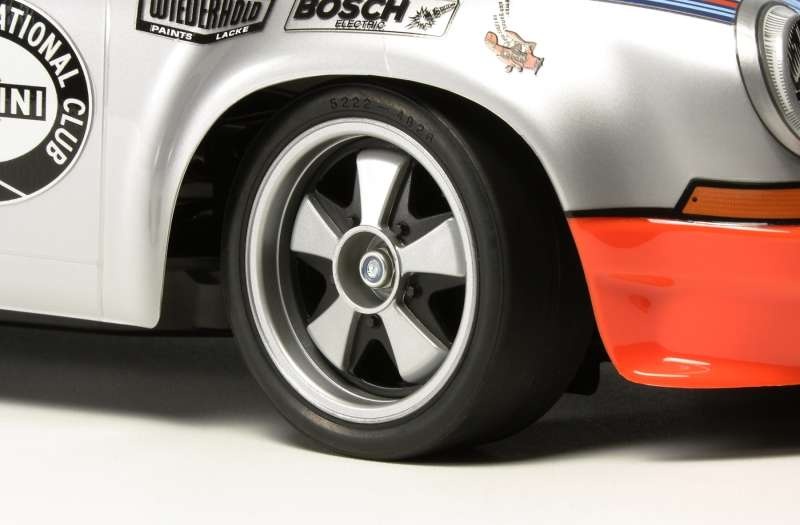

• slick tires
• decal sheet and painting aids (window masking film) included

Technical data: Scale 1:10 length 457 mm Wheelbase 257 mm

Scope of delivery: Kit with illustrated and detailed assembly instructions

Required accessories: Batteries and charger, PS paint, RC system with servo.
