Description

The QuicRun series from HobbyWing includes brushed and brushless drive systems. In the brushless systems there are also sensorless and sensor-based drives, so this series offers a suitable solution for every need. The series is also very affordable and is primarily aimed at beginners and advanced pilots. It also convinces by the outstanding known quality of Hobbywing products as well as by the uncomplicated commissioning.

Features:

• Water & dust protected for use in any weather & track conditions.
• Small size with built-in capacitor module
• Three different driving modes are available:
• Forward / Brake / Reverse
• Forward / Brake
• Forward / Reverse (also called Crawler Mode)
• Good current carrying capacity
• Built-in switching BEC with high power
• Automatic throttle travel calibration
• Easy to program via jumpers
• Various protection functions:
• Low voltage protection for batteries
• Thermal overheating protection
• Gas signal loss protection

Technical data Forward constant / short time load: 60A /360A Reverse constant / short time load: 30A /180A Voltage range: 2-3S Lipo or 5-9 NiMH Scale: 1/10 Application / Field of use:

• Touring Car
• buggy
• Short Course Truck
• monster
• truggy
• Rock Crawler
• Tank

Motor Limit:

• 2S Lipo or 6 cells NiMH: 540, 550 Motor size: >=12T or RPM < 30000 @7.2V
• 3S Lipo oder 9 Zellen NiMH: 540, 550 Baugröße Motor: >=18T or RPM < 20000 @7.2V

Internal resistance: Forward 0.001O / Reverse 0.002O BEC Output: 2A / 5V (Linear Mode) PWM Frequency: 1KHz Dimensions: 36.5 x 32 x 18 Weight: 39g Fan: Without

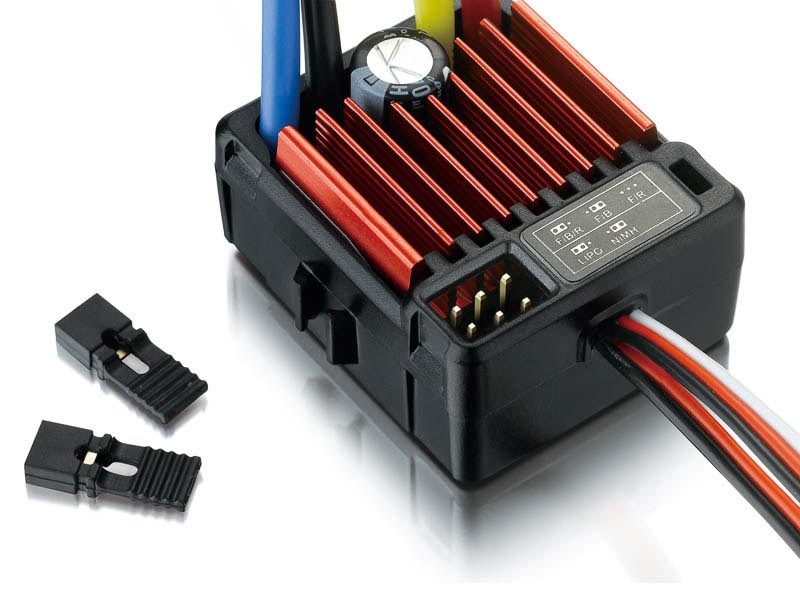

The controller can be programmed via jumpers. Operating modes:

• Forward / Brake / Reverse
• Forward / Brake
• Forward / Reverse (also called Crawler Mode)

Battery Type: LiPo / NiMH
