Description

Full flexibility in building a model aircraft – that’s what the LT 200 Flex offers. The kit can be used to build either a glider model or an electric glider model. electric glider model. For a motor drive, the appropriate frame sets are included, for the glider variant, a shapely nose is made of balsa. nose is made of balsa.

Three control options can be built for this model – with pure 2-axis control via elevator/aileron, 3-axis control with additional ailerons or control with additional ailerons or as a 4-flap wing with flaps/brakes. This allows LT 200 Flex to be used both as an RES model or as a fully developed thermal glider from the kit.

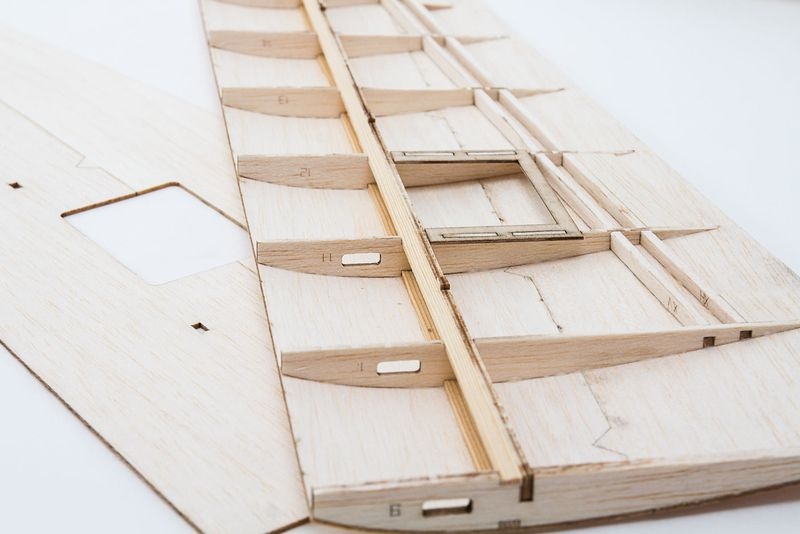

The construction is based almost entirely on a wooden construction, with the exception of the fuselage boom, which is made of thin-walled CFRP. The fuselage is built in a layered construction from laser-cut wooden parts. The wings are made of an easy-to-build ribbed construction and are The wings are made of an easy-to-build ribbed construction and are fully covered, eliminating the need for foil.

The wing profile allows for a very slow flying style and also enables the exploitation of thermals and updrafts even at low altitudes. The airbrakes allow a vertical descent without any significant increase in airspeed.

LT 200 Flex appeals not only to experienced model pilots who have always wanted to own a multi-flap wing for leisurely theming, but also young model builders who have already made their first experiences in building wooden models (e.g. with the Lilienthal 40 RC) and now want to now want to go higher. Due to the intuitive construction method and youth-friendly building instructions, this model is also suitable for assemblies in clubs, e.g. as a joint winter construction project.

Technical data: Wing span [mm]: 1,920 Length [mm]: 1.120 Weight [g]: > 850 Wing area [dm²]: 30.2 Wing loading [g/dm²]: 28 RC functions: Elevator, aileron, rudder, airbrakes, motor control

The kit contains All precision laser cut wood parts for the superstructure, as well as small parts for the rudder linkages, wing attachment, servo board, slipway for building fuselage and wings, building instructions with 3D stage drawings.
